Control Unit
Control Unit Definition

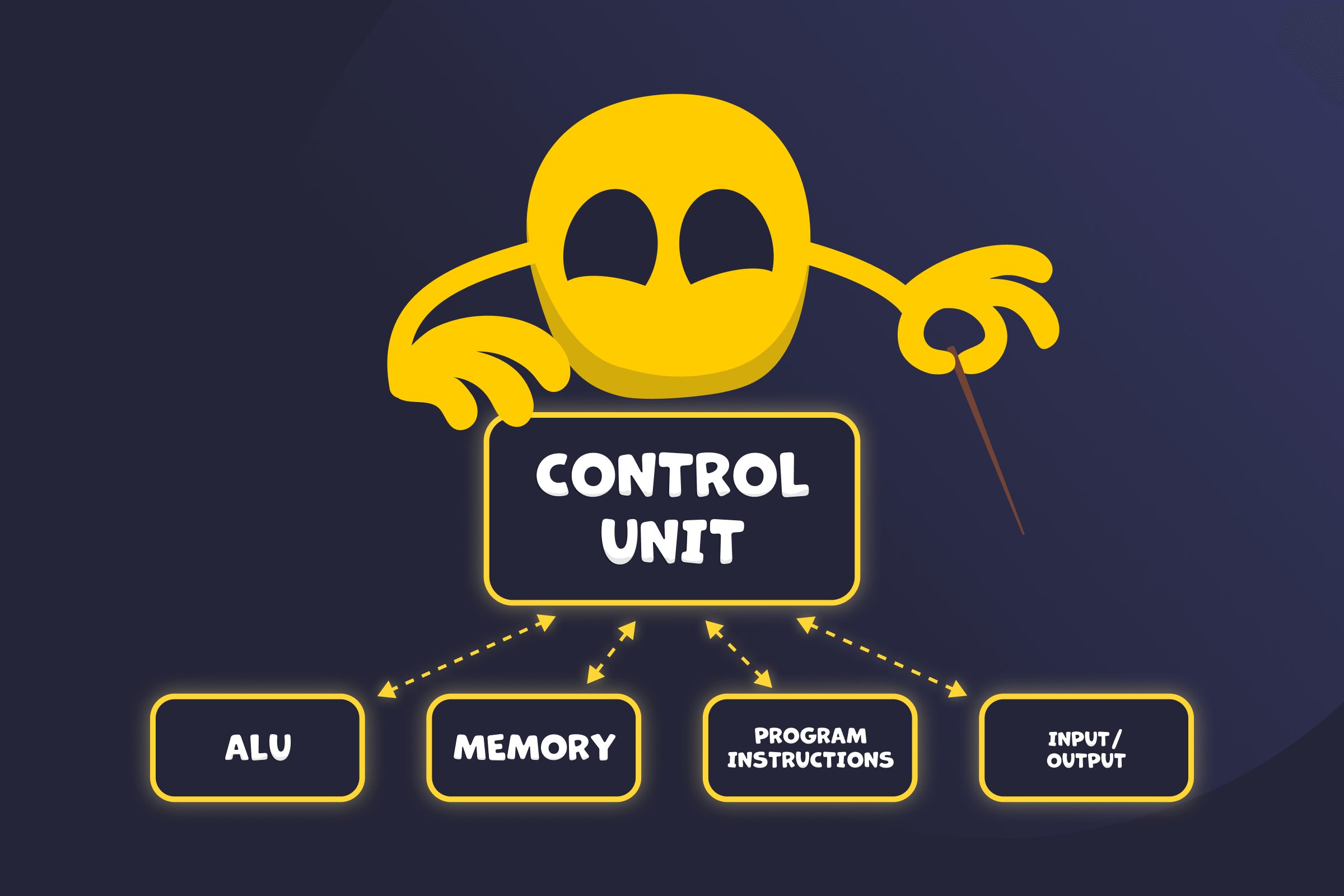

The Control Unit (CU) is a core component of the computer’s central processing unit (CPU). It acts as the coordinator of the processor, directing how instructions are carried out and how different components work together.
The Control Unit doesn’t perform mathematical calculations itself. Instead, it interprets software instructions and sends signals to other parts of the CPU, such as the arithmetic logic unit (ALU) and memory. By controlling timing and sequencing, it ensures that operations happen in the correct order and at the right moment. Without it, the processor would have no way to organize or execute tasks reliably.
How the Control Unit Works
The Control Unit operates through a repeated process called the fetch-decode-execute cycle. First, it fetches an instruction from memory. Next, it decodes that instruction to understand what action is needed. Finally, it directs the appropriate components to perform the action.
This cycle happens extremely quickly and repeats continuously while the computer is running. In modern processors, multiple instructions may be handled at different stages of the cycle at the same time — this is known as pipelining. Even in these advanced designs, the Control Unit remains responsible for coordinating each step and keeping operations synchronized.
Types of Control Units
- Hardwired Control Units: Built using fixed hardware circuits. They’re fast and efficient, but difficult to change or upgrade.
- Reconfigurable Control Units: Designed to adapt their internal structure on demand for better performance or additional workloads.
- Buffered Control Units: Use temporary storage to hold instructions, helping reduce repeated memory access and improve processing speed.
- Microprogrammed Control Units: Rely on microcode stored inside the processor to define how instructions are executed. They’re easier to update but may be slightly slower than hardwired designs.
- Branch prediction logic: Works alongside the CPU’s control logic to anticipate which instruction will be needed next, helping maintain processor speed. It’s not formally classed as part of the Control Unit itself.
Read More
FAQ
No. Mathematical and logical calculations are handled by the arithmetic logic unit (ALU). The Control Unit directs when those calculations should occur and manages the overall flow of instructions.
The Control Unit is a hardware component inside the CPU. However, in microprogrammed designs, it uses microcode, which behaves like low-level software stored within the processor.
Different types of Control Units balance speed, flexibility, and complexity. Hardwired units prioritize performance, while microprogrammed units offer easier updates. The choice depends on the processor’s intended use and performance goals.
