Crossover Cable
Crossover Cable Definition

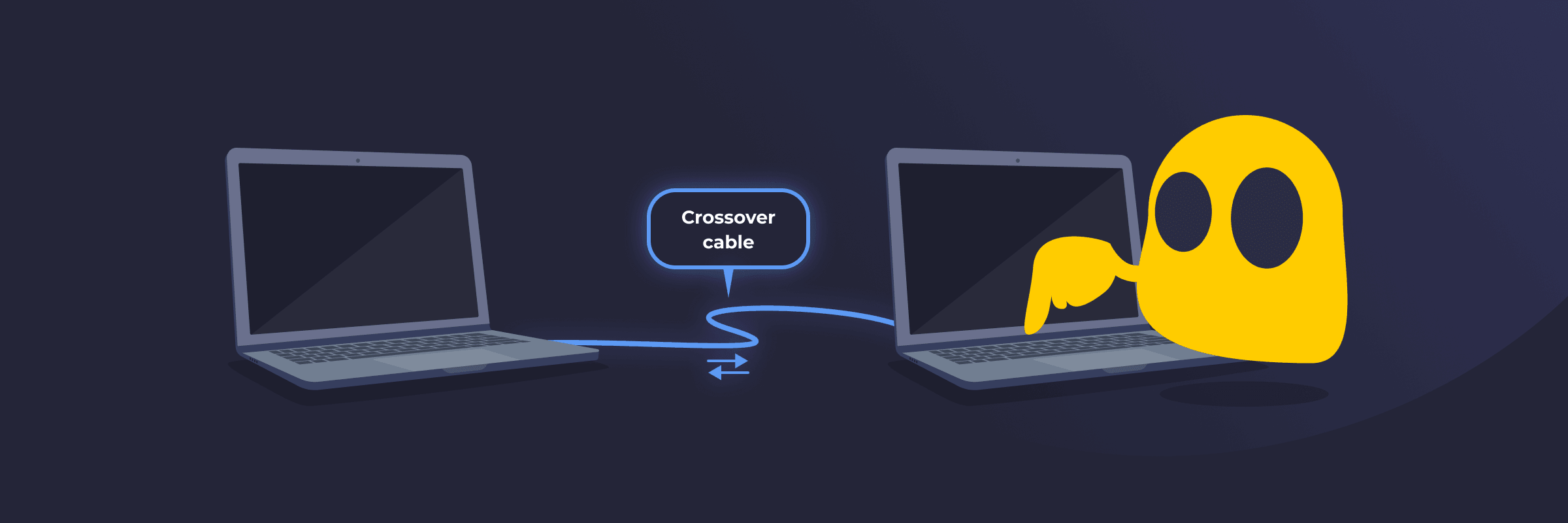

A crossover cable is a type of Ethernet cable traditionally used to connect similar Ethernet devices, such as two computers or two switches, without using a router or switch. It’s designed so that both devices can exchange data over a direct link.
How a Crossover Cable Works
A crossover cable changes how signals travel between devices by switching the internal wire pairs. In traditional Ethernet connections, devices use different wire pairs for transmitting and receiving data. The cable rearranges these connections at one end, often using T568A on one side and T568B on the other, so each device’s output connects to the other’s input. This allows both devices to communicate properly without any intermediary hardware.
Most modern Ethernet devices support auto-MDI-X, which automatically adjusts transmit and receive pairs and removes the need for crossover cables in most situations.
When to Use a Crossover Cable
- Older hardware: With older devices that don’t support auto MDI-X and can’t adjust connections automatically.
- File transfers: To move files between two computers without using a network or the internet.
- Data backup: To connect directly to another computer or storage device for fast and simple backups.
- Device setup and troubleshooting: When a device needs a direct connection for initial setup, configuration, or diagnosing issues.
- Team collaboration: To share files and resources directly between devices in a small group without relying on external networks.
- Network testing: To test ports, connections, or hardware in isolation.
- Small or temporary setups: For quick setups where adding a switch or router isn’t necessary.
Limitations of Crossover Cables
- Direct device connections: Crossover cables are designed mainly for connecting two devices and aren’t suitable for larger network setups.
- Limited modern use: Most modern Ethernet devices support auto-MDI-X, which removes the need for crossover cables in many situations.
- Identification confusion: Crossover cables can be difficult to distinguish from standard Ethernet cables without checking the wiring.
- No network management: They don’t replace routers or switches for traffic management, routing, or expanding networks.
Crossover Cable vs Ethernet Cable
A crossover cable connects two similar devices directly. It swaps the transmit and receive wires so the devices can communicate. A straight-through Ethernet cable typically connects devices through a router or switch and doesn’t change the wiring.
Read More
FAQ
Yes, you can make your own crossover cable by using a standard Ethernet cable and wiring the connectors differently on each end. You crimp one end using the T568A standard and the other using the T568B standard, which swaps the transmit and receive wire pairs. This requires basic tools, like an Ethernet crimper and connectors, and careful attention to the wiring order.
No, crossover cables can’t be used for all network connections. They’re designed for direct connections between similar devices. Most modern networks use standard Ethernet cables because devices support auto-MDI-X, which handles the connection automatically. Crossover cables are mainly useful for specific cases or older hardware.
You can tell if a cable is a crossover cable by checking the wire order inside the connectors. Hold both ends side by side and compare the colored wires. If the order is different on each end, it’s a crossover cable. If the order is the same on both ends, it’s a standard Ethernet cable.
