Hop Count
Hop Count Definition

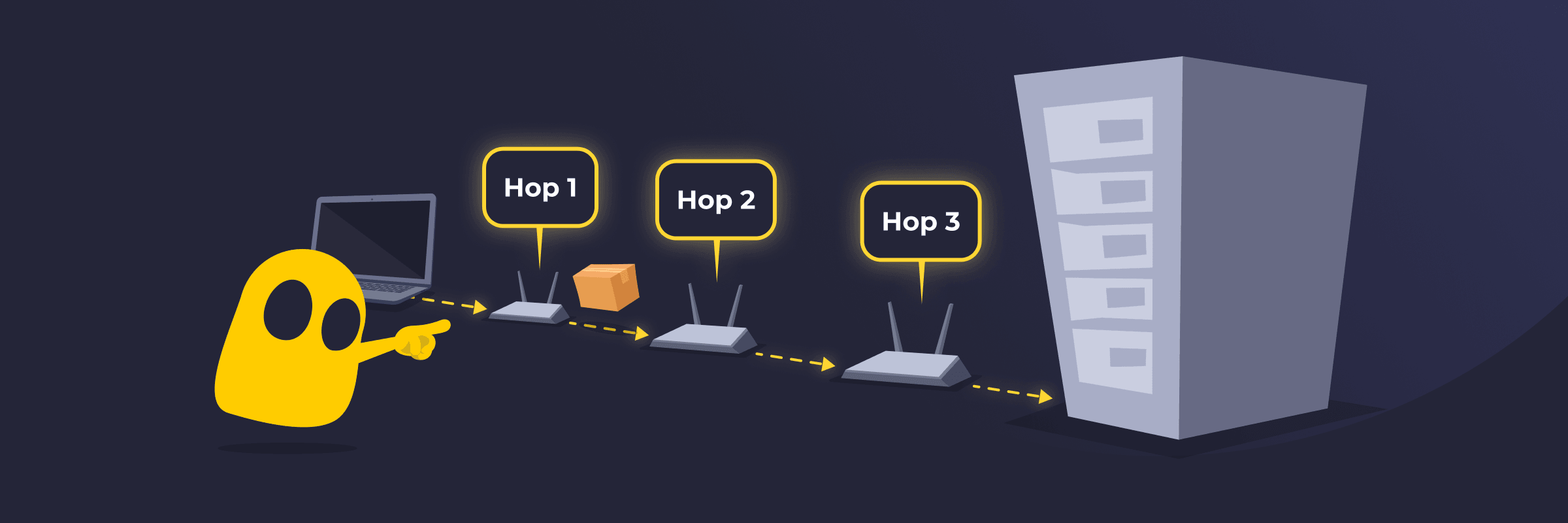

Hop count is a networking term that shows how many devices (usually routers) a data packet passes through on its way to its destination. Each device along the path counts as one hop. The total hop count shows how many steps the data takes across a network. Routers increase this count each time they forward the packet. Networks use hop count to choose efficient routes and to stop packets from moving in endless loops.
Hop Count in Routing Protocols
Hop count is a simple metric that routing protocols use to help routers choose the best path for data. It shows how many routers a packet must pass through to reach its destination.
Different routing protocols use hop count in several ways:
- Primary metric (e.g., RIP): Some protocols, such as RIP, use hop count as their only routing metric, selecting the path with the fewest hops. In RIP, a hop count of 16 is considered unreachable, which limits the maximum network size to 15 hops. This is one of the main reasons RIP isn’t suitable for large networks.
- Protocol-specific hop limits: Some routing protocols define their maximum hop count to prevent routes from growing too large.
- Packet-level hop limits (TTL/Hop Limit): Separately, IP packets use the Time-to-Live (TTL) field in IPv4 or a Hop Limit in IPv6. These values decrease at each hop and cause the packet to be discarded when the limit is reached, helping prevent routing loops.
- Loop prevention tracking (e.g., EIGRP): Some protocols track hop counts for loop prevention or stability purposes. For example, EIGRP maintains a maximum hop count, but it doesn’t include it as part of its path selection metric.
- Alternative metrics (e.g., OSPF, EIGRP): More advanced protocols don’t use hop count to choose routes. For example, OSPF calculates path cost based on bandwidth, while EIGRP uses a combination of bandwidth and delay.
- Dynamic updates: Routing protocols continuously exchange information and update hop counts or other metrics as network conditions change.
Benefits of Hop Count
- Simplifies usage: Is easy to understand and quick for routers to calculate.
- Speeds up route selection: Helps routers choose paths with minimal processing.
- Prevents routing loops: Uses hop limits to stop packets from circulating endlessly.
Limitations of Hop Count
- Offers limited accuracy: Doesn’t account for speed, congestion, or link quality.
- May select inefficient paths: Fewer hops don’t always mean faster or more reliable routes.
- Becomes less effective in large networks: Hop count works best in smaller or simpler network environments.
How to Reduce Hop Count
- Connect to servers that are geographically closer to reduce the number of network steps.
- Rely on networks or services that select more direct paths for the traffic.
- Connect through a reliable ISP, as some providers route traffic more efficiently than others.
- Use a high-quality VPN. A VPN usually adds extra hops, but a well-optimized provider may route traffic more efficiently, which can sometimes improve performance and, in some cases, even reduce the total hop count.
- Use tools like traceroute to identify and avoid long or inefficient network paths.
Read More
FAQ
A good hop count is as low as possible, since fewer hops mean a more direct path to the destination. In general, a hop count under 10 is considered efficient for most internet traffic. However, fewer hops don’t always mean better performance, as factors like speed, congestion, and routing quality also play a role.
Yes, hop count can affect speed, but it isn’t the only factor. Fewer hops usually mean a more direct path, which can reduce delay. However, network speed also depends on factors like bandwidth, congestion, and link quality, so a path with more hops can sometimes be faster if those conditions are better.
Hop count shows how many devices a data packet passes through on its path. Latency measures how long it takes for the data to travel from source to destination. A lower hop count can help reduce latency, but it doesn’t guarantee faster delivery.
Hop-count-based routing can handle dynamic network conditions to a limited extent. It updates routes as routers share new information, so paths can change when the network changes. However, because it only considers the number of hops, it can’t fully adapt to factors like congestion or link quality, which can lead to less efficient routing decisions.
